DESCRIPTION

Basic Info

Model NO.	DN150
Head Code	Round
Material	Ductile Iron,Stainless Steel 304,316 etc.
Connection	Flange
Material of Gaskets	EPDM
Working Pressure	Pn10/16/25
Product Name	Connection SS304 316 Flexible Universal Stainless
Warranty	1 Year
Transport Package	Wooden Case
Specification	DN40-DN3000
Trademark	OEM
Origin	Henan, China
Production Capacity	1000000per Year

Product Description

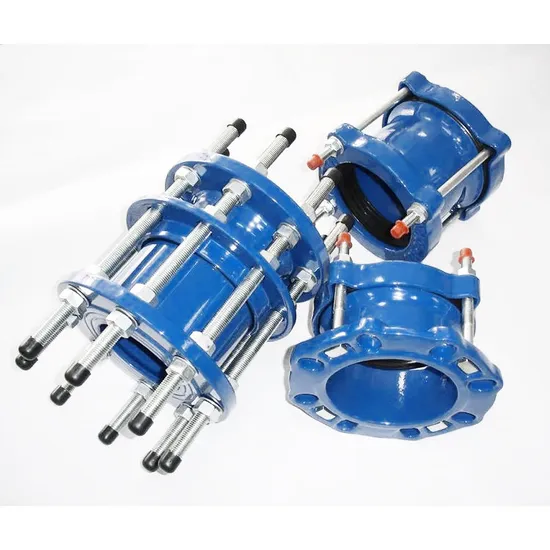

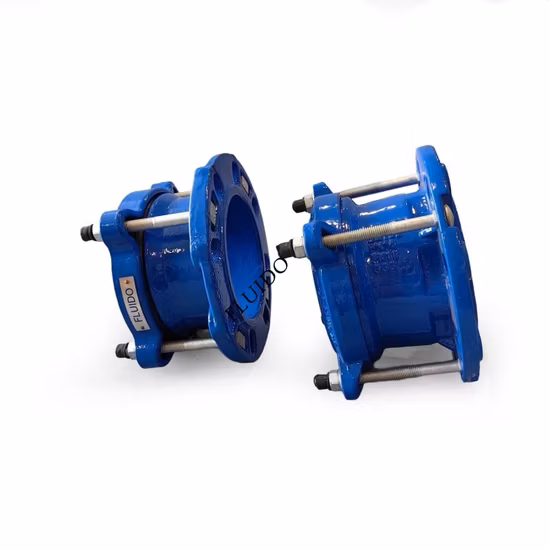

The flange adaptor is mainly composed of body, gland,sealing ring and bolts. The body and gland are usually made of carbon steel or ductile iron, and the sealing ring is made of EPDM sealing, which has good water tightness and air tightness.Supporting the use of expansion joints and butterfly valve, the flange surface between the axial extension and radial angular displacement, position and angle to compensate the error of pipe flange, eliminate the internal stress caused by pipeline pipeline temperature, bring great convenience to the installation and maintenance of pipelines.

Product Parameters

time	description	material	quantity
1	end ring	stainless steel	1
2	gasket	EPDM	1
3	bolt	stainless steel	N
4	body	stainless steel	1
5	plastic cap	plastic	N

Connection for pipes in material	ductile iron,steel,PVC,AC etc.
Working pressure	PN10/16/25
Maximum temperature	-10ºCto +70ºC
Application	Suitable for portable water, neutral liquidsand sewage

feature

wide tolerance range
corrosion resistant construction
angular deflection ±4°

DN(mm)	RANGE(mm)	LENGTH(mm)	D(mm)	BOLT
				SIZE	QTY
50	59-72	75	165	M12×130	2
65	72-85	75	185		2
80	88-103	76	185		4
100	93-117	78	218
100	105-122	78	218
100	108-128	78	218
125	125-140	78	250
125	132-146	78	250
125	138-153	78	250
150	155-175	80	272
150	158-182	80	272
175	192-210	85	312
200	218-235	85	335
225	235-252	85	355
225	250-267	85	405
250	265-280	90	405		6
250	272-289	90	405
300	315-332	90	460
300	322-339	90	460
350	351-368	110	510	M16×180	8
350	374-391	110	510
350	386-415	110	510
400	400-429	110	580
400	410-436	110	580
400	418-435	110	580
400	425-442	110	580
450	455-472	115	640		10
450	476-493	115	640
500	500-432	120	690
500	527-544	120	690
600	600-630	130	820
600	630-647	130	820

Special size and length can also be customized.

If you want to know more details of our products,please click here to contact us

advantages

1. Installation and dismantling are very convenient.
2. Low price
3. Has a high integrity.



products application

Packaging & Shipping

Packaging

Inner:plastic film packaging.

Outer:standard export wooden case or pallet packaging.

Shipping

1.Fed Ex/DHL/UPS/TNT for sample.Door-to-Door.

2.By Air or By Sea for batch goods for LCL/FCL;Airport /Port receiving.

3.Customers specified freight forwarders or negotiable shipping methods!

4.Delivery Time: a.in stock:immediately b.sample:2 days c.OEM/ODM:3-15 DAYS.
